Pentax 67 6×7 Light Seal Placement Guide

Pentax 67 6×7 Light Seal Placement Guide

Before doing anything, please go here.

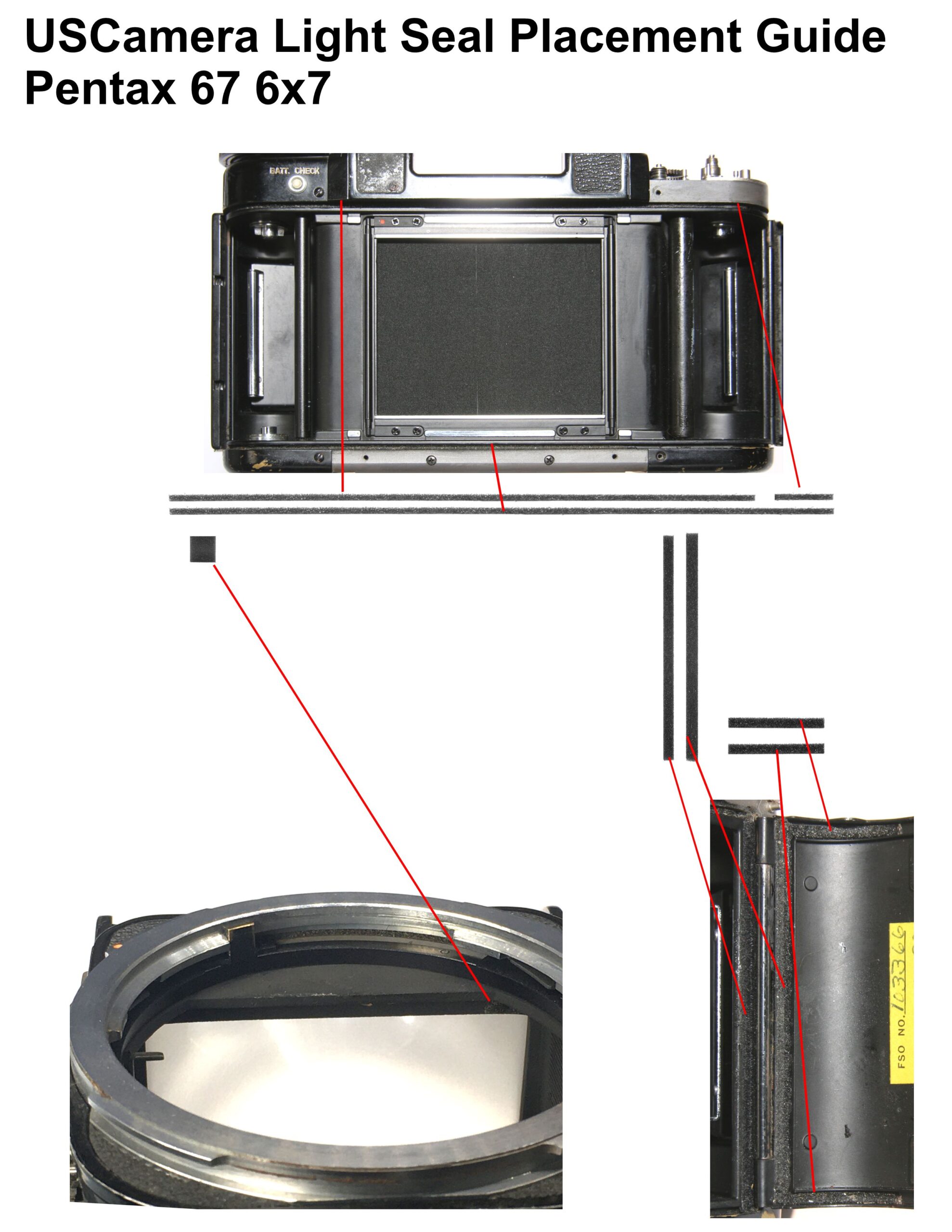

Pentax 67 6×7 Light Seal Placement Guide
For more information on purchasing this kit, go here.

This 8 piece light seal kit for Pentax 6×7 cameras includes,

top channel seal, camera body, from the hinge to the counter opening – 1 x 1mm
top channel seal, camera body, from the counter opening to the latch side – 1 x 1mm
bottom channel seal, camera body – 1 x 1mm
mirror cushion – 1 x 3mm
hinge seal on the camera body (not foam, doesn’t usually need replacement) 1 x 1mm
hinge seal on the back cover 1 x 1mm
top/bottom, door channel seal, back cover, hinge end – 2 x 1mm
