Door Channel Foam – 195mm Long – No Adhesive
$8.60 – $9.80

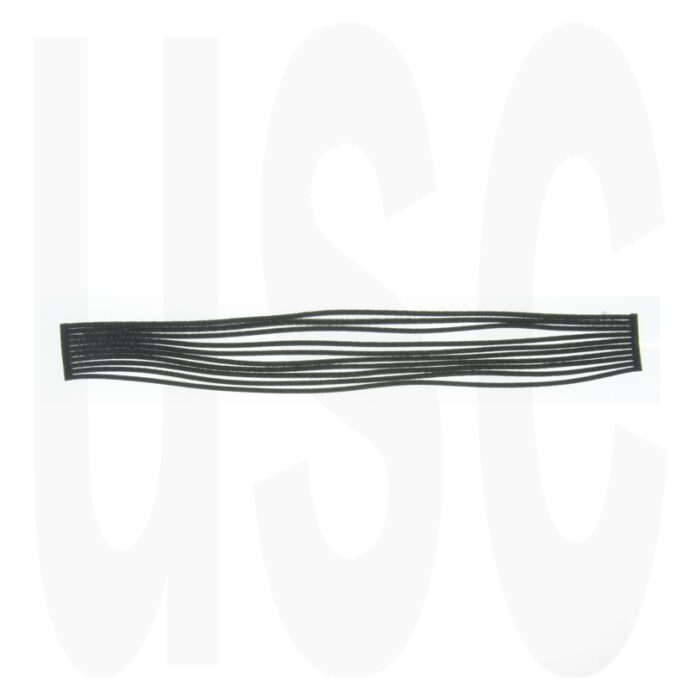

USCamera imported Black open cell door channel foam without adhesive. These strips are 195mm long. Available in thicknesses of 1.50mm, 2.00mm, 2.50mm, 3.00mm with various widths. Made in Japan for USCamera.
These seals are the most common sizes used for most film cameras. I find them much easier to install than adhesive backed foam and more permanent when glued down with contact adhesives like Pliobond. Just a few examples of the applications for these foam seals…
- a 1.5 x 1.5 seal was used in the body channels on the Nikon FE, FG and FM series cameras and more. The Minolta SRT, and X series body channels also use a 1.5 x 1.5 foam seal.
- a 2.0 x 2.0 seal was used in the body channels for the Canon A-Series camera. Also fits the OM series cameras body channels.
- a 3.0 x 3.0 can be used the Mamiya TLR cameras back cover.
- a 3.0 x 3.0 seal strip can be cut to 39mm long and used as a mirror cushion for most of the A-Series cameras.
We can custom cut most any width and length up to 400mm of the foam material we sell.
Use option to select channel seals available in 1.50mmT, 2.00mmT, 2.50mmT, and 3.00mmT of various widths. T = foam thickness.
Door Channel Foam – 195mm Long No Adhesive | Premium Open Cell Foam |Â SPT Members Special
USCamera | Imported Light Seal Strips Cut with Adhesive
Door Channel Foam – 195mm Long No Adhesive | Premium Black Open Cell Foam
Photographic Grade Foam Light Seals
Before doing anything, I recommend reading about removing and replacing light seals.
USCamera stocks premium light seal foam sheets, also strips and kits with the adhesive applied or without.
We add new parts, light seals and also downloads to our inventory almost every day.
First of all, we import all of our light material which is photographic grade open cell foam.
This product is listed as Door Channel Foam – 195mm Long No Adhesive
We also make and stock over 100 light seal kits for many popular camera models.
USCamera Online Since 1998
Light Seal Kits | Foam Sheets | Pre-Cut Strips | Genuine Parts | Digital | Flash | Lenses | Vintage Film Cameras
USCamera light seal kits also start with precise measurements taken from the actual make and model of the equipment.
We do not sell kits that supply you with a couple of pre-cut pieces which would be easily cut. Then supply you with material which will require you to learn how to accurately hand cut body and back cover channel seals. These seals average 1.4mm – 2mm wide and average 165mm long. Believe me, it takes a lot of practice to accurately cut seals like those. The percentage of errors and waste is high and accurate cuts are low.
Door Channel Foam | Premium Black Open Cell Foam | Foam Sheet | Premium Open Cell Foam Lasts Years | Also Same High-Quality Original Japanese Foam | USCamera
Also, you may need to learn how to remove the old seals from your camera.
Additionally, you may have to cut a short piece from a body channel seal to clear the counter lever opening.
Some cameras use fabric or leather type pieces of material on the back cover or the body, usually at the latch end. We also try and note that information in the light seal placement guides. Most of the time you do not want to remove those pieces. Generally, they do not wear out. I have serviced cameras that have seen many rolls and they are in good condition.
Furthermore, USCamera placement guides can really help you if all the light seals have been removed before you acquired the equipment. See all available USCamera light seal placement guides.
Door Channel Foam – 195mm Long No Adhesive | Premium Black Open Cell Foam
Stocking cut light seals from 1.3 mm wide to 11 mm wide in a thickness of 1.0, 1.5, 2.0, and 3.0 with adhesive.
Foam sheets are available 250 long by 100 or 25mm wide.
Lastly, USCamera has real camera techs in-house and we also truly enjoy everything about film cameras. Always available to answer any questions contact us anytime.
USCamera makes many popular film camera light seal kits.
Film cameras are showing some renewed interest, check out what’s new.
| Weight | 2 oz |
|---|---|
| Imported Black Open Cell Foam Strips |
Black Open Cell Foam Strips Without Adhesive 1.50T X 1.50W 195 Long x 10 pieces ,Black Open Cell Foam Strips Without Adhesive 1.50T X 1.60W 195 Long x 10 pieces ,Black Open Cell Foam Strips Without Adhesive 2.00T X 2.00W 195 Long x 10 pieces ,Black Open Cell Foam Strips Without Adhesive 2.00T X 2.50W 195 Long x 10 pieces ,Black Open Cell Foam Strips Without Adhesive 2.50T X 2.50W 195 Long x 10 pieces ,Black Open Cell Foam Strips Without Adhesive 2.50T X 3.00W 195 Long x 10 pieces ,Black Open Cell Foam Strips Without Adhesive 3.00T X 3.00W 195 Long x 10 pieces |
