Chinon CX CX II Light Seal Kit
$9.50

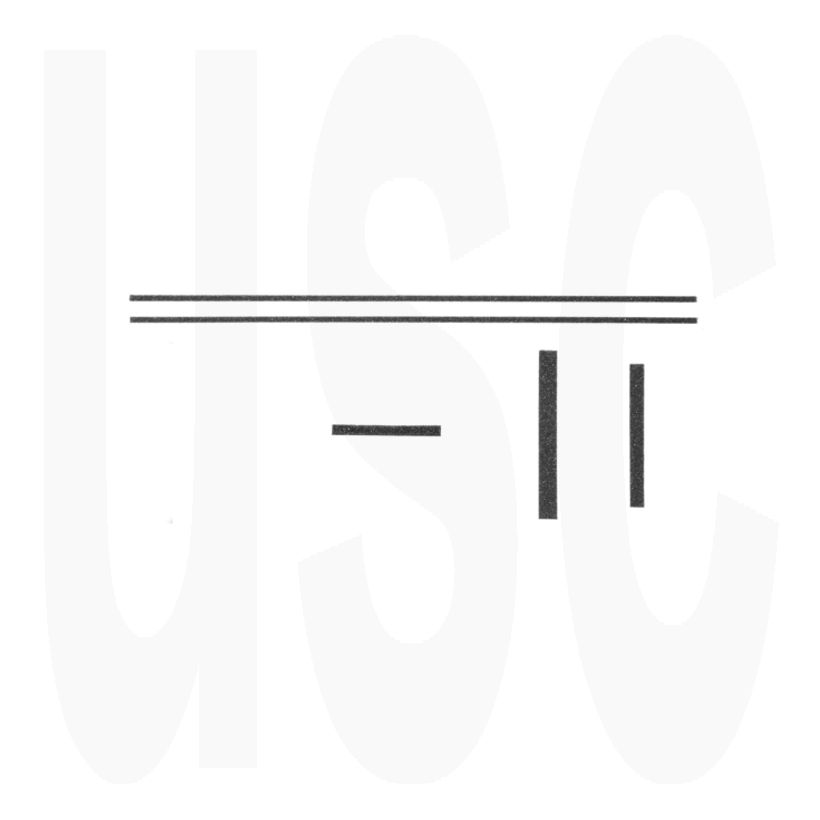

USCamera custom light seal kit fits the Chinon CS, CX, CX II, and GAF L-CSÂ 35mm SLR film cameras. The custom 5-piece kit includes 1 custom mirror cushion, upper/lower channel seals for the camera body, 1 back cover hinge seal, and 1 latch plate seal on the back cover. Premium USCamera foam is Made in Japan. Your will need to use an adhesive delay when installing the latch plate seal. That seal is wide, and needs to fit tight. Since that seal has the adhesive applied, I found it was easiest to lick the adhesive side really well, and then put in place quickly. I would leave the back cover open for a couple hours until that seal dries so it doesn’t move when the cover is closed. Also, I would not replace the hinge seal on this camera, unless it is missing of course. It is not made of foam and will last another 40 years if left in place.
Help with removal, and replacement of foam seals is always available online.
USCamera light seal kit placement guide for this Chinon film camera. Coming Soon!
Peeling the foam from the backing can be difficult for some. This video may help.
In stock
0
People watching this product now!
Description
Chinon CX CX II Light Seal Kit | Chinon CS | GAFÂ L-CS | 35mm SLR
USCamera | Cosina Custom Light Seals | Vintage 35mm Parts | Owner – User – Service Manual Downloads | Vintage Service
Chinon CX CX II Light Seal Kit | CS | GAFÂ L-CS | 35mm SLR
USCamera Free Monthly Download | Every Month | Always Free
Please contact us with any questions you may have. We add new parts, downloads, also photo items, and light seals almost every day.
See all of our light seal kits f0r Chinon.
USCamera light seal kits start with Premium Black Open Cell Foam.
Do you want to make your own light seal kit? Maybe you have an item that needs light seal foam. We can help with that too.
USCamera Online Since 1998
Chinon – Vintage Film Camera Light Seals | Premium Japanese Open Cell Foam | Service Manuals and Part Lists
Do you want to make your own light seal kit? Maybe you have a photo item that also requires a special size of the light seal foam.
Sometimes sheet foam is the best solution. We have foam in 1mm, 1.5mm, 2mm, 2.5mm, 3mm, and 4mm thickness in stock.
Plus, we have many pre-cut strips of light seal material 230 mm long.
For help with removing and replacing light seals, please. Also, following the link to a short read can improve the quality of your light seal install.
USCamera light seal placement guides also can help you. Especially if the old light seals have already been removed.
Chinon CX CX II Light Seal Kit | CS | GAFÂ L-CS
USCamera light seal placement guide for this Chinon body.
We make light seal kits for over 100 film cameras. Shop all Chinon light seal kits.
Chinon CX CX II Light Seal Kit | CS|Â GAFÂ L-CS | 35mm SLR
First of all, the most important work you have to do is to remove the old seals. Focus on clean, clean, clean.
Make sure to remove all traces of the old door channel seals, mirror cushion, the door hinge, and anywhere else you are replacing old seals.
The finest adhesive in the world will not adhere to that sticky goo that was once a light seal.
Finally, a proper install will give you thousands of light tight exposures.
Lastly, always made to inspire, see the New film camera products online.
Additional information
| Weight | 1 oz |
|---|
