Before doing anything, please read about seal removal and installation.

This Minolta X1 XK XM light seal kit is always in stock.

We add new parts, light seals, and downloads are added almost every day.

Please contact us with any questions or requests you may have.

Tech Note: Most camera body channel seals are installed starting at the hinge end, working towards the latch side until the seal is used up. I will list that difference here.

You are installing an 8-piece kit for the Minolta X-1,  X-K, or  X-M film cameras.

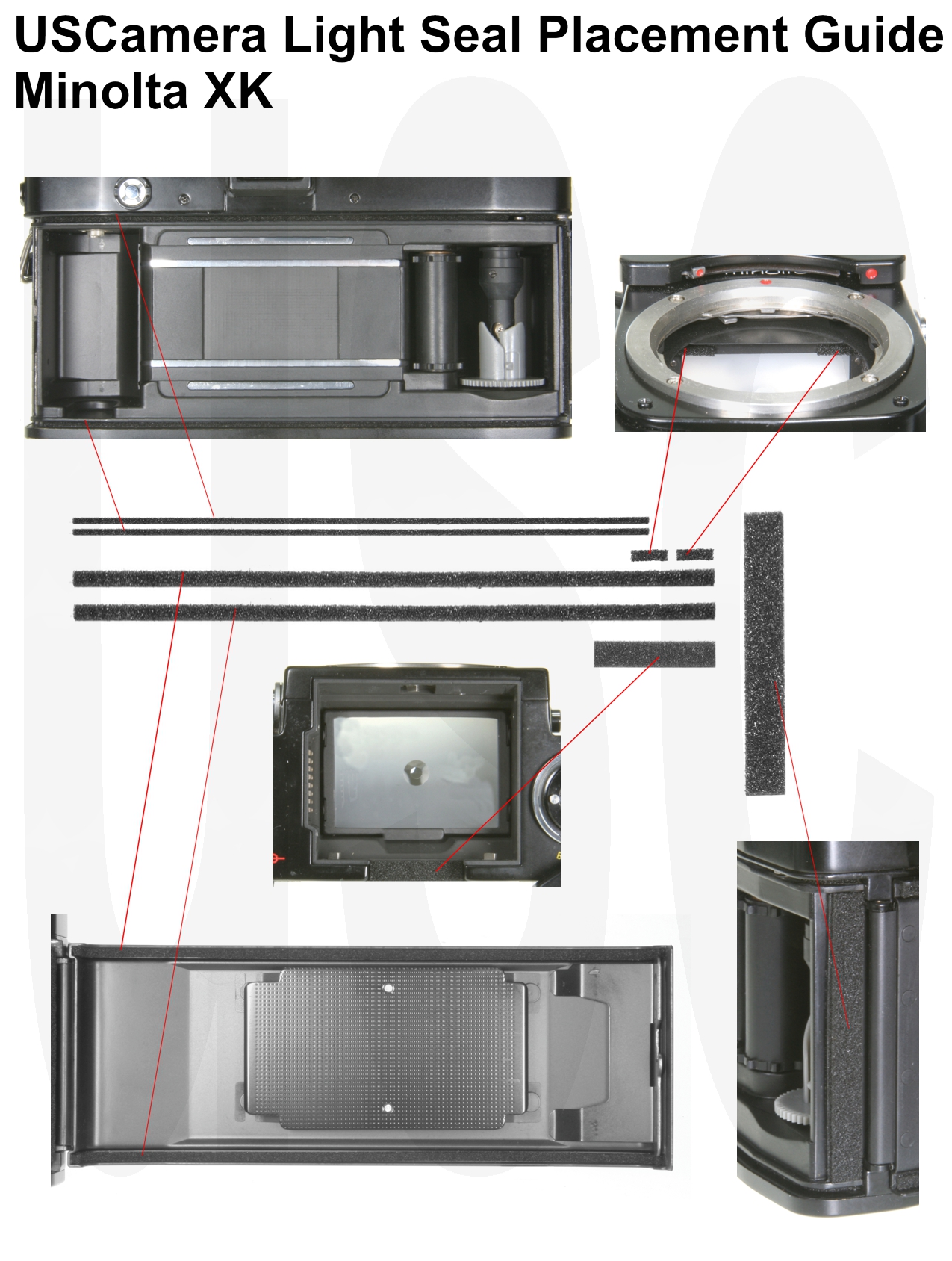

Minolta XK Light Seal Placement Guide. See all light seal placement guides currently available.

Back Cover – 2 pieces

Bottom channel seal, back cover, hinge end – 1 x 1mm
Top channel seal, back cover, hinge end – 1 x 1mm

Camera Body – 6 pieces

Finder Rest, camera body – 1 x 2mm
Hinge Seal, camera body, Hinge end – 1 x 2mm
Mirror Cushions – Left /Right Sides – 2 x 2mm
Bottom channel seal, camera body – 1 x 1.mm
Top channel seal, camera body – 1  x 1.5mm*
*you will need to cut a small foam strip from either body channel seal. Cut to size to fit the top channel, starting at the hinge end to the counter lever opening. That piece should measure less than 26mm

Minolta X-1 XK XM Light Seal
